It’s a 2020 Nissan Rogue with a 2.5L 4Cyl QR25DE naturally aspirated engine.
A P0101 fault code occurred after oil & filter replacement maintenance service.
P0101 (MAF Sensor Circuit Range/Performance)
On these Nissans, P0101 is a frequent flyer, often triggered by a mismatch between actual airflow and what the ECM expects to see based on throttle position and engine load.
Beyond the Fault Code

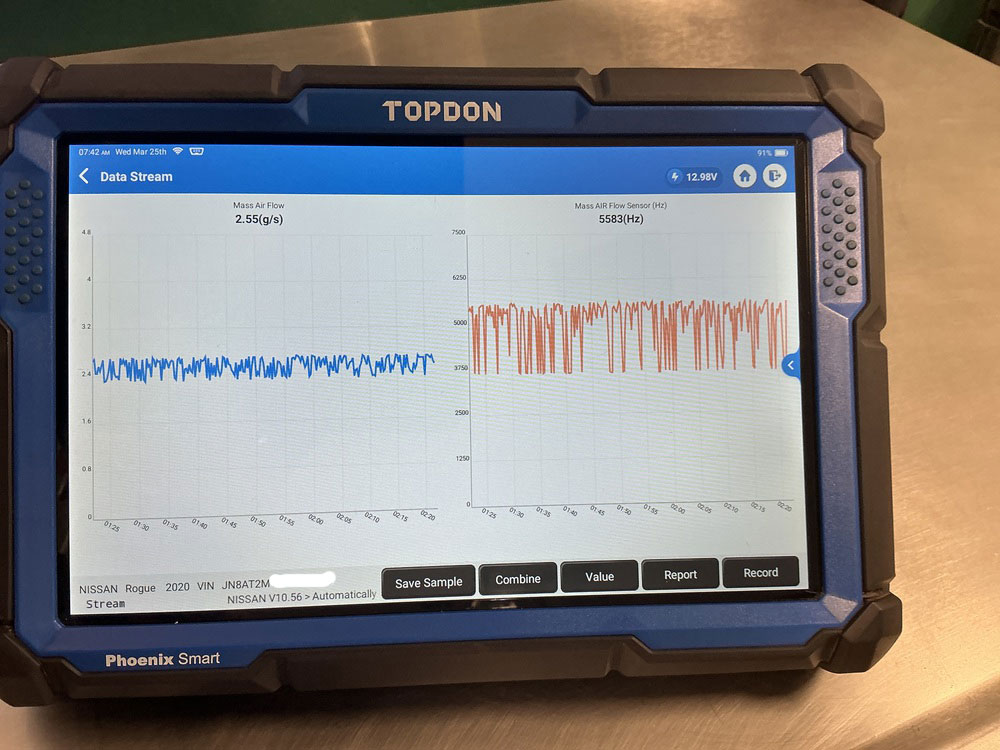

Read the data stream. At idle and operating temperature, the MAF Hz was reporting too high, the sensor was over-reporting.

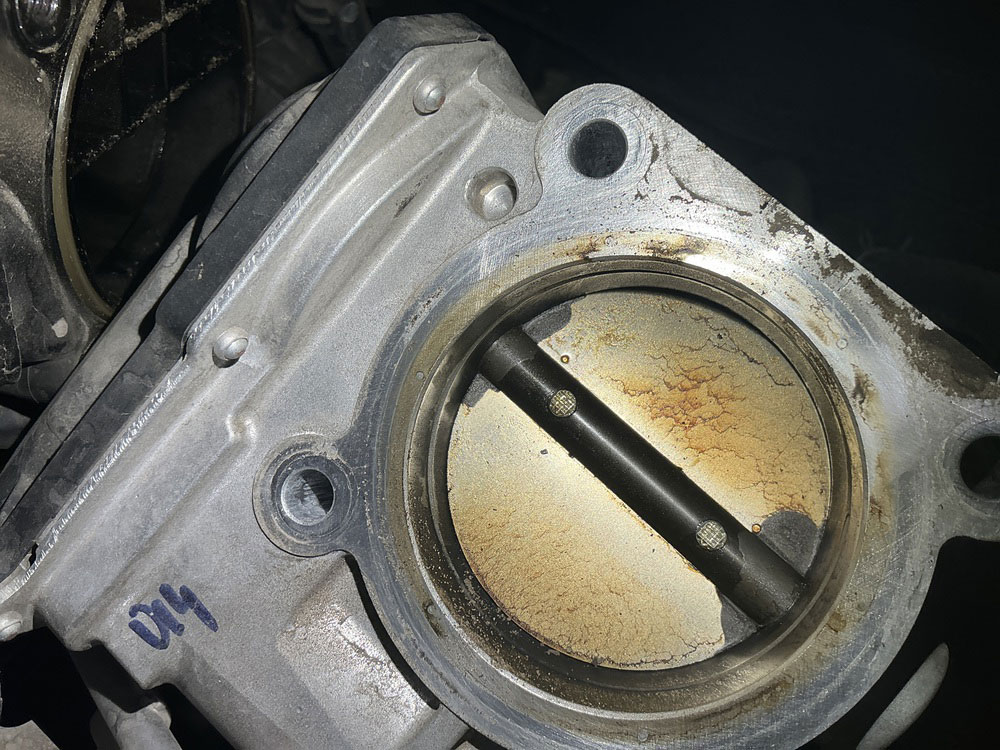

I pulled the air filter and found it severely clogged. This was the first “red flag” that the entire intake tract was likely contaminated. I pulled the throttle body and found excessive carbon buildup around the plate. This buildup was preventing the plate from closing to its “home” position, throwing off the idle air calculations.
After a thorough cleaning of the MAF and throttle plate, I attempted to perform the Closed Throttle Position and Idle Air Quantity Learn. The Closed Throttle Learn failed to complete after multiple attempts. When the mechanical wear or electronic drift in a throttle body reaches a certain threshold, the ECM simply loses the ability to “re-learn” the zero-point.
The Plan Of Attack: We recommended a new Throttle Body, MAF sensor, and Air Filter, alongside a critical ECM software update I identified through the Topdon Phoenix Smart.
Cloud-Based Programming
Once the fresh parts were installed, it was time for the “Digital Fix.” In the aftermarket world, using OEM software like Nissan Consult can be a fragmented, cable-heavy nightmare, costly and frustrating due to multiple files needing to be downloaded and uploaded on a PC. The Topdon Phoenix Smart streamlines this into a joy.

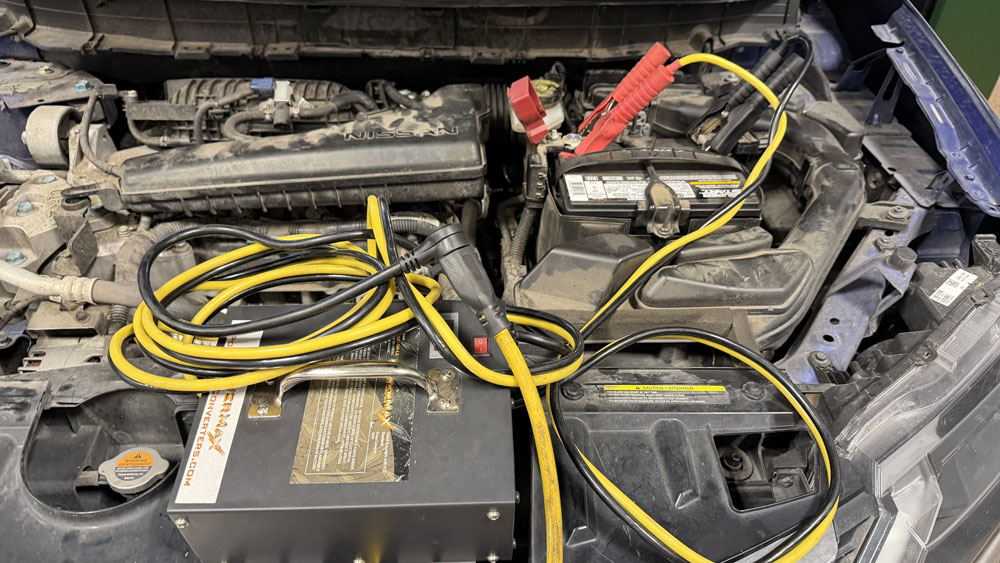

A quick tip: I never initiate a flash without a dedicated battery maintainer. A voltage drop mid-programming is the fastest way to brick a module and turn the customers car into a paper weight.

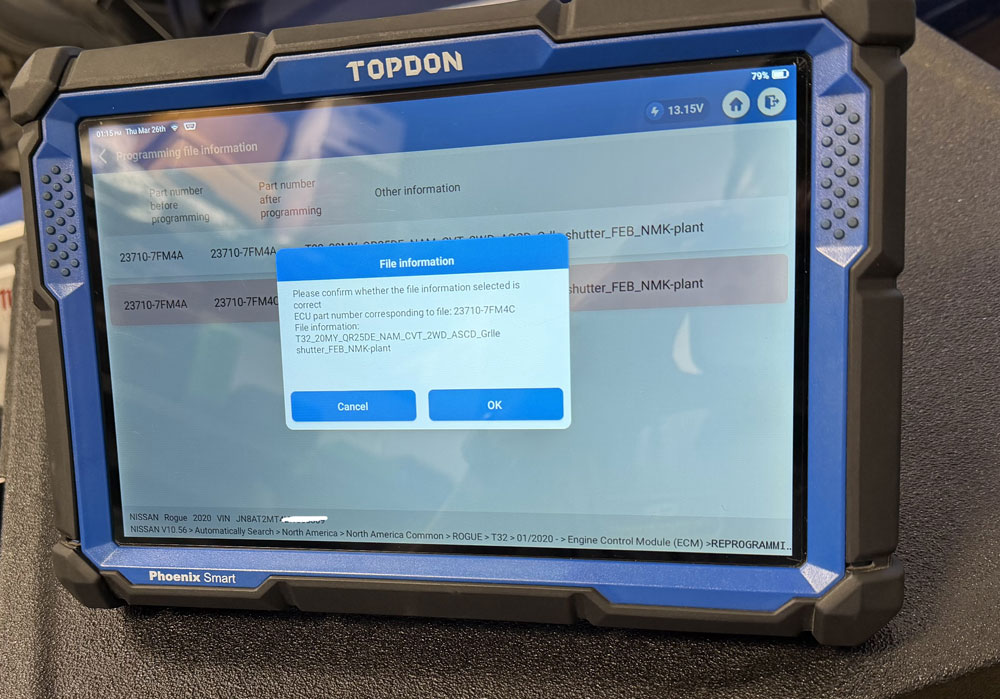

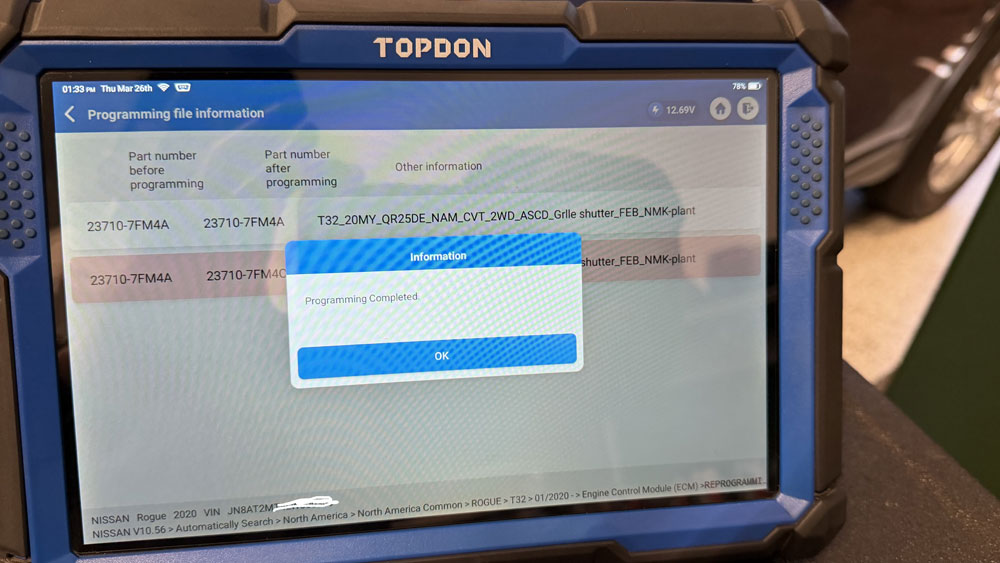

The Phoenix Smart displayed the current calibration alongside the targeted update file. The interface is clean and intuitive; no bulky laptops, just professional-grade tunneling to the cloud. After a seamless flash and a module reset, the software was now optimized to handle the new components.
An easy verification

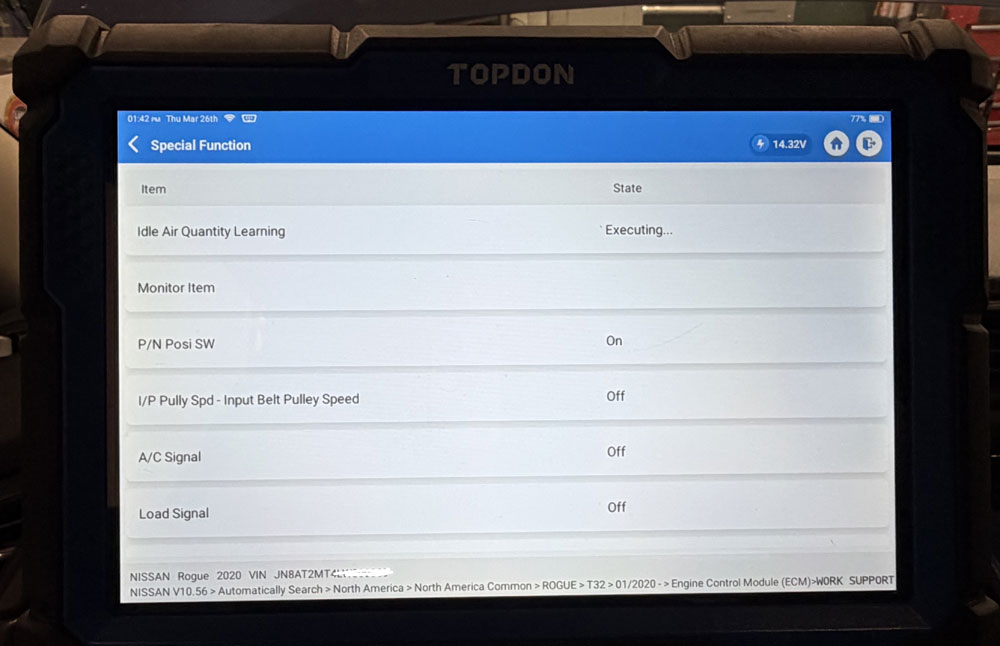

With the update complete, the Closed Throttle Position and Idle Air Quantity Learn finished successfully on the first try. But I don’t trust a “Success” message alone—I verify the physics.
I broke out the Topdon Scope Box to capture the MAF waveform. Seeing that perfect, rolling waveform confirmed that the new sensor was communicating cleanly and the engine was breathing exactly as designed.
DTC Status: P0101 Cleared and Resolved.
Software: ECM updated to latest OEM calibration.
Verification: Waveform confirmed via Scope; 10-mile successful test drive.
