Tutorial: How to program a GM 8L90 8 speed gearbox transmission TCM module using Topdon Rlink J2534 & Techline Connect SPS2 OEM software.
Model example:
Vehicle: 2017 Cadillac Escalade 6.2L
The vehicle arrived at the shop with a significant transmission concern. This vehicle is equipped with the 8L90 eight-speed transmission—and, unsurprisingly, it was experiencing delayed, harsh upshifts along with abrupt, clunky downshifts. These symptoms are common in the 8L90 family, often caused by internal component wear and fluid breakdown, which negatively affects the pressure control solenoids.
With 126,139 miles on the odometer and no prior service history, the technician proceeded with a fluid sample inspection. The sample revealed a typical silver-gray metallic color rather than the normal red LV ATF. This level of contamination points to significant internal clutch or bushing wear—well past the point where a simple fluid exchange or the “shudder fix” TSB would be effective. Given the mileage and fluid condition, a full transmission assembly replacement was recommended and approved.
After installing the new unit and verifying fluid levels, it was time to perform the necessary programming and the essential fast learn procedure. And as any technician who has sat in the bay waiting on transmission temps knows, that process is anything but fast.
First, he set up a dedicated battery maintainer to ensure the voltage remained stable. During any programming event, voltage drops are not tolerated—any fluctuation or drop can interrupt the communication between the software and the module, potentially bricking a brand new TCM. Then logged into my ACDelco account and selected SPS2 (Service Programming System), GM’s web-based programming software.

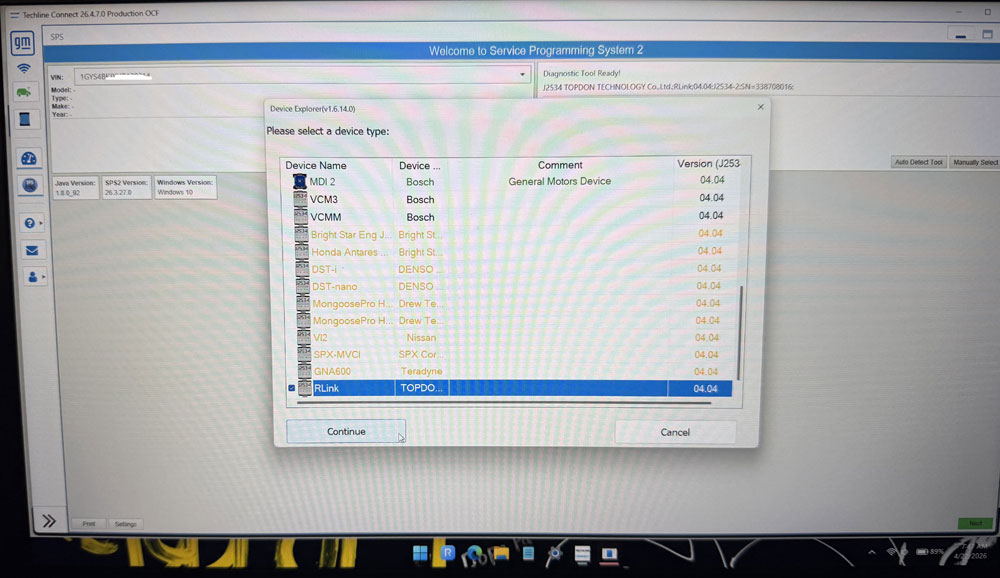

After hooking up the RLink J2534 and launching Techline Connect, the software loaded, and he was able to select the RLink as the active J2534 pass-through device. The RLink handles the high-speed CAN protocols required for GM’s modern architecture without any lag. From there, he navigated to the K71 Transmission Control Module (TCM), selected “Replace and Program,” and proceeded with the process.

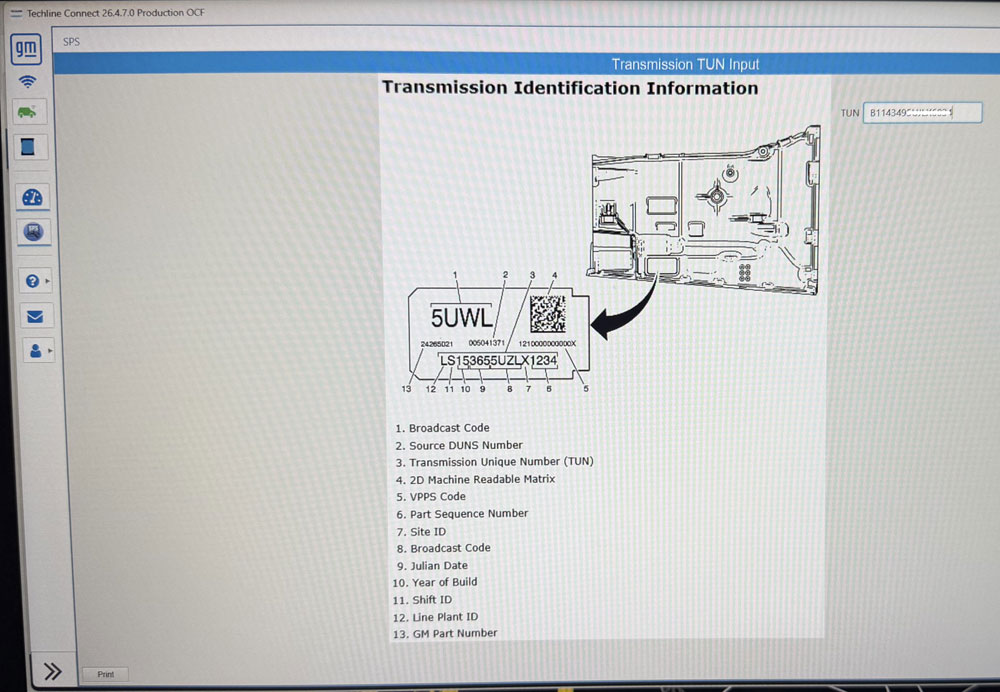

A critical part of this specific procedure is having the TUN—Transmission Unique Number—ready. This is not a step you can skip or guess. The TUN is a 16-character alphanumeric code located on a label affixed to the side of the 8L90 case; it’s also often included in the paperwork from the parts supplier. This number is required for MCVM, which stands for Mechanical Characterization and Virtual Matching.
Without the correct TUN entered into SPS2, the solenoid characterization data stored in the TCM may not be compatible with the physical flow rates of the solenoids in the new unit. Entering this number allows the GM server to pull the exact software map that matches the mechanical tolerances of your specific valve body. Essentially, it’s a dedicated solenoid valve characterization program tailored to that particular assembly.

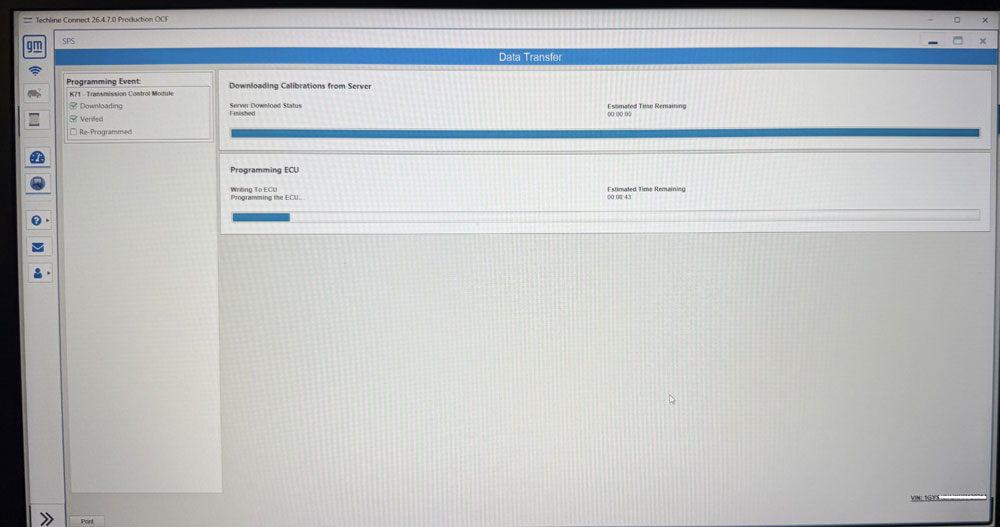

Once the TUN was verified and the flash was completed, he moved on to the final stage: the Service Fast Learn. On these GM 8-speed transmissions, the Fast Learn process is mandatory. It’s called a “fast learn” because it is performed directly through the software alone, rather than relying on an extensive, road-based adaptive learn.
The typical adaptive learn process is long and can exhibit rough shifts or flares as the TCM slowly makes adjustments on its own over several days of driving. The Service Fast Learn, by contrast, performs a series of internal tests that allow the TCM to learn individual clutch apply pressures and volumes immediately. These learned values are then used by the TCM to manage clutch control and shift timing. It is vital not to drive the vehicle or move the shifter until this procedure is 100% complete.

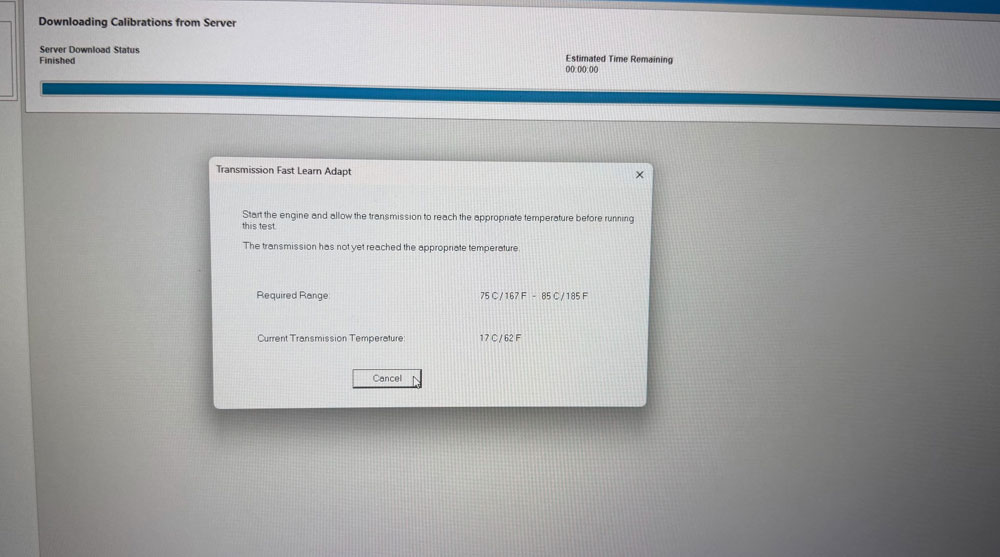

Once the transmission fluid temperature reached the required 167°F, I started the procedure. During the learn, it’s important to keep your foot firmly on the brake, as the vehicle will buck, lurch, and cycle through various line pressures while the TCM calibrates each clutch pack. So just enjoy the ride.

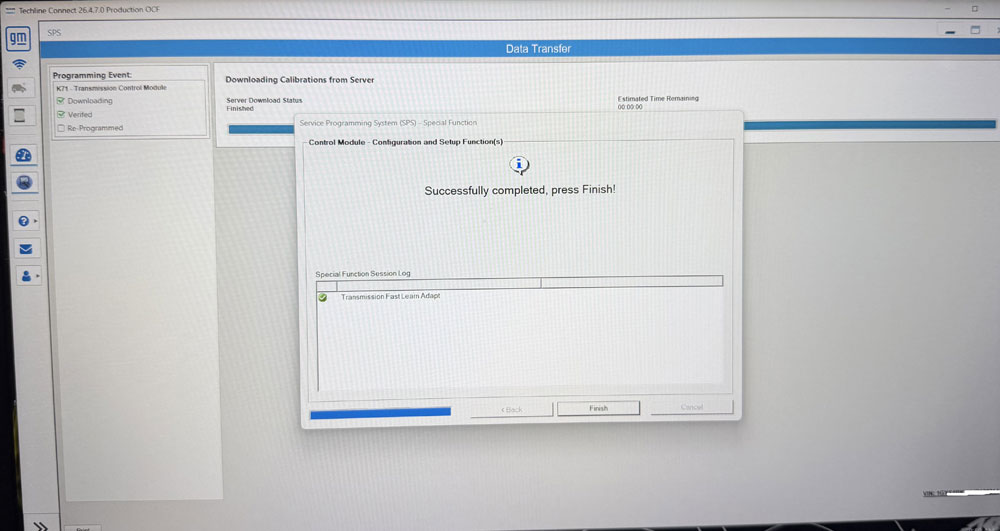

If performed successfully, SPS2 provides a Procedure Complete message and a green checkmark. Another major benefit of the RLink J2534 and SPS2 is the ability to clear all DTCs that may have been triggered during the programming session right there in the software, there’s no need to close the program and jump into GDS2 or grab a separate scan tool.
The Escalade was successfully programmed and calibrated using the RLink.
