What is the difference between Topdon Phoenix Lite 3 and OTOFIX D1 Pro (now only has D1 ProS)? Which is better for beginners?
The Topdon Phoenix Lite 3 and OTOFIX D1 ProS are two popular mid-range options in the $700–$900 price range, offering OE-level diagnostics, bi-directional controls, advanced coding, and support for modern protocols like CAN FD and DoIP. Both target small repair shops, technicians, and advanced home users who need more than a basic OBD2 code reader.While they share many core capabilities, they differ significantly in hardware design, processing power, screen quality, software features, and unique tools. This article breaks down the key differences based on official specifications and real-world details to help you decide which scanner fits your needs.
|
Feature / Specification
|
 |
OTOFIX D1 ProS
 |
Notes
|
|---|---|---|---|
|
Screen Size & Resolution
|
8-inch LCD touchscreen, 1280 × 800
|
10.4-inch LCD touchscreen, ~2000 × 1200 (high-res)
|
OTOFIX has a larger screen
|
|
Processor
|
4-Core 2.0 GHz
|
Kryo octa-core up to 2.2 GHz
|
|
|
RAM / Storage
|
2 GB RAM / 64 GB
|
4 GB RAM / 128 GB
|
OTOFIX larger storage
|
|
Operating System
|
Android 10.0
|
Android 11.0
|
OTOFIX – Slightly newer OS
|
|
Battery Capacity
|
12,600 mAh (up to ~24 hours reported)
|
7,250 mAh (solid but shorter)
|
Topdon – Significantly longer runtime
|
|
Cameras
|
Rear 8 MP
|
Front 5 MP + Rear 8 MP
|
|
|
Connectivity
|
Bluetooth VCI (MDCI), Wi-Fi 2.4/5 GHz
|
Bluetooth VCI (V1), Wi-Fi 5
|
Similar; both wireless
|
|
Protocols Supported
|
CAN FD, DoIP, J2534 pass-thru
|
CAN FD, DoIP
|
|
|
Full-System Diagnostics
|
Yes
|
Yes
|
|
|
Bi-Directional / Active Tests
|
Yes
|
Yes
|
|
|
ECU Coding / Programming
|
Online & offline (Benz, BMW, VW/Audi, Porsche, Renault, Nissan, Ford, Mazda, etc.)
|
Advanced online coding (strong on VW/Audi, Peugeot, Citroën, Renault)
|
Topdon – Broader brand support overall
|
|
Topology Mapping
|
Yes (visual network/wiring diagram)
|
No
|
Topdon – Excellent for complex troubleshooting
|
|
Service / Reset Functions
|
~35 (oil, EPB, TPMS, BMS, SAS, DPF, etc.)
|
~40+
|
OTOFIX – Slightly more common resets
|
|
Special Features
|
Topology display, flash hidden functions, ADAS compatibility (optional), compatible with scope
|
Auto Scan 2.0 (faster scans), VAG guided functions, cloud data, personalization
|
Depends: Topdon for topology; OTOFIX for speed & VAG
|
|
Vehicle Coverage
|
168+ makes, very broad (strong American/European)
|
80+ manufacturers, 140+ brands, frequent new model updates
|
Tie – Both excellent & regularly updated
|
|
Free Updates
|
2 years free
|
2 years free
|
Tie
|
|
Update Cost After 2 Years
|
~$495/year (passenger car)
|
~$195–$250/year (Autel ecosystem)
|
|
|
Included Accessories
|
More OBDI adapters/cables out of box, kickstand
|
Standard VCI, fewer legacy adapters
|
Topdon – Better out-of-box for older cars
|
|
Typical Price (2025–2026)
|
$799–$859 (MSRP; often ~$700–$750 discounted)
|
$700–$800 (frequently seen ~$709–$750)
|
OTOFIX – Sligtly better value on average
|
|
Best For
|
Mobile techs, long sessions, topology lovers, broad programming needs
|
Shop use, fast scans, VAG-group vehicles, big-screen preference
|
Vehicle Coverage
Both cover tens of thousands of models from 1996 to current (including Asian, European, and domestic vehicles).
- OTOFIX D1 ProS: 80+ manufacturers, 140+ brands, 10,000+ models (strong emphasis on frequent updates for new models).
- Topdon Phoenix Lite 3: 168+ vehicle makes (very broad, with excellent support for American and European trucks/SUVs).
Pros and Cons Summary

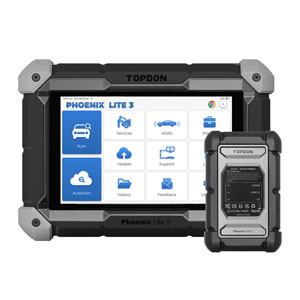

Topdon Phoenix Lite 3
Pros: Excellent battery life, topology mapping, extensive ecu coding options, more physical accessories, compatible with immo, battery tester, scope etc add-on modules, rugged design.
Cons: Smaller/lower-res screen, less RAM/storage, fewer service functions.
Pros: Excellent battery life, topology mapping, extensive ecu coding options, more physical accessories, compatible with immo, battery tester, scope etc add-on modules, rugged design.
Cons: Smaller/lower-res screen, less RAM/storage, fewer service functions.

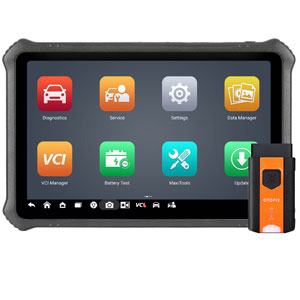

OTOFIX D1 ProS
Pros: Larger sharper screen, more powerful hardware (RAM/storage), faster scans, dual cameras, broader online coding for French brands, cloud features.
Cons: Smaller battery, slightly fewer programming brands listed, fewer included adapters, does not support topology, ADAS etc.
Pros: Larger sharper screen, more powerful hardware (RAM/storage), faster scans, dual cameras, broader online coding for French brands, cloud features.
Cons: Smaller battery, slightly fewer programming brands listed, fewer included adapters, does not support topology, ADAS etc.
Final Verdict: Which Should You Buy?
- Pick the OTOFIX D1 ProS if you want a modern tablet feel, faster performance, bigger/sharper screen, more RAM/storage, and quicker scans — especially valuable in a busy shop or for VW/Audi work.
- Pick the Topdon Phoenix Lite 3 if you prioritize long battery life, visual topology mapping for diagnosing complex electrical issues, deeper coding on more brands, and more included adapters for older vehicles.
