How to Set up Topdon Rlink J2534 with Volvo OEM Software VIDA?

14/09/2026 sales Topdon Diagnostic Tool 0

How to set up and connect Topdon RLink J2534/ Rlink X7/ Rlink Lite/ ONE VCI adapter with Volvo OEM software VIDA?



Tips：You need to install the VOLVO OEM software before use. If it’s not installed yet, you can download and install it from the official VOLVO website.

https://www.volvotechinfo.com/



1. Open the RLink Platform.Clicking “Login to the Account” will automatically
redirect you to the login page.Log in to the account bound to the RLink J2534 device.
Note: After binding and activating the device and downloading the driver, you can use the RLink J2534 device to perform vehicle diagnostics without opening the RLink Platform later.

rlink j2534 nissan oem software 1

rlink j2534 nissan oem software 2

2. Click the settings icon. Then click About to check whether there is an update for the RLink Platform. If yes, click Update.
rlink j2534 nissan oem software 3

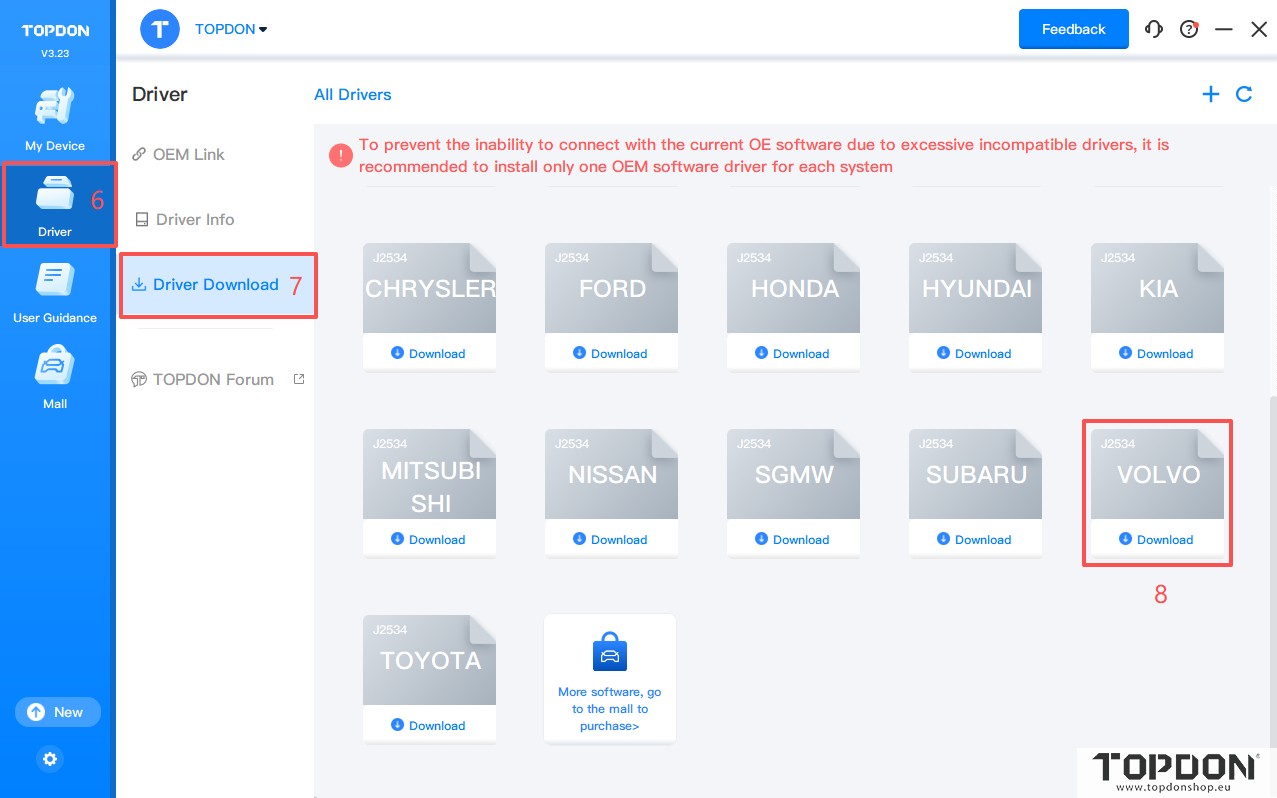

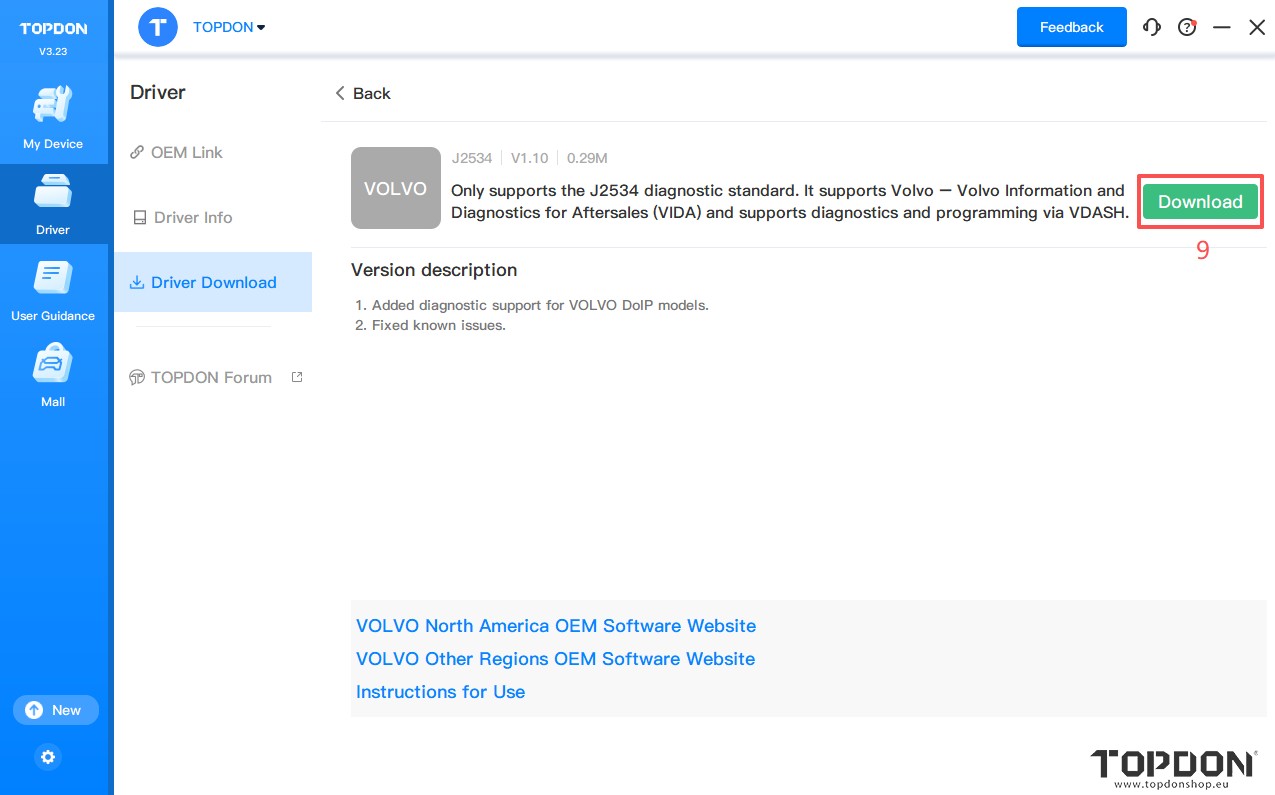

3. Click Driver> Driver Download. Click VOLVO and click Download to download the driver.

Note: Download the corresponding driver according to the OEM software. Do not download drivers that are not related to the OEM software

rlink j2534 volvo vida 1

​rlink j2534 volvo vida 2

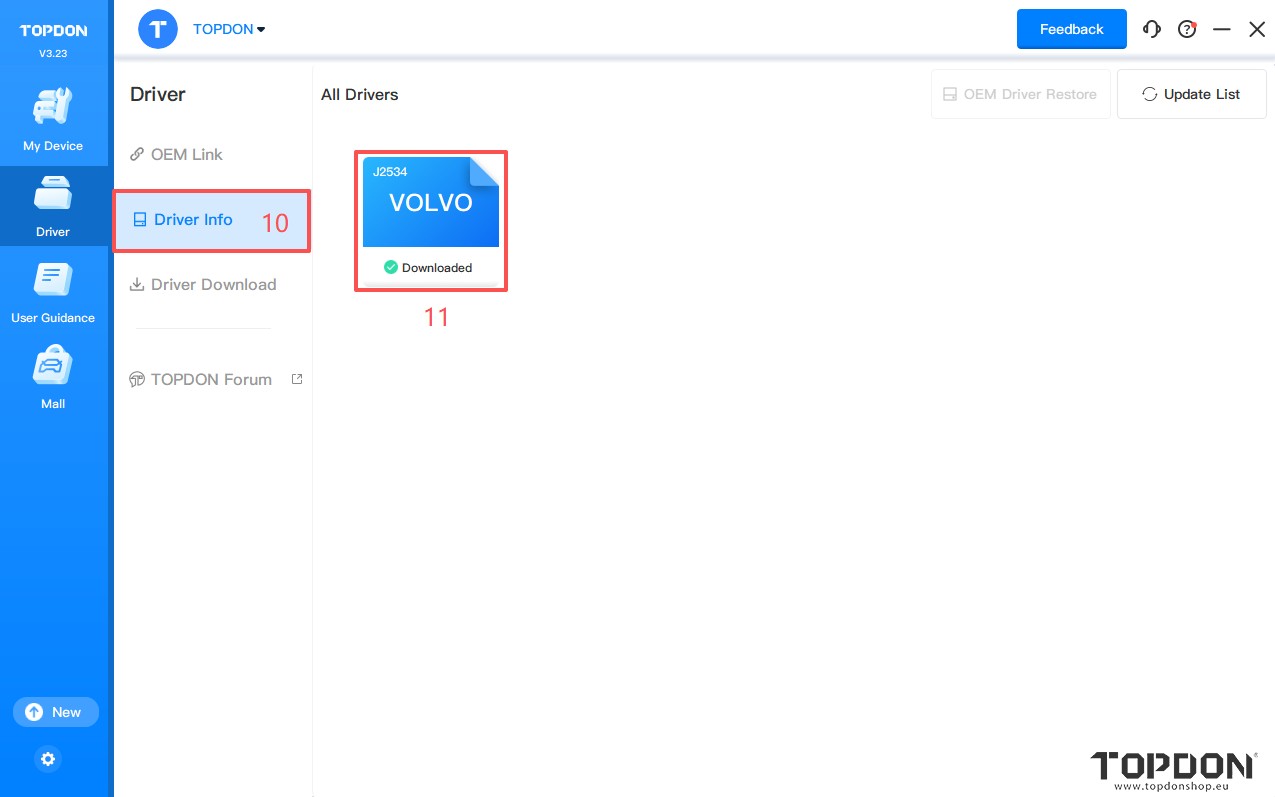

4. Click Driver > Driver Info. Then click VOLVOto check the driver mode.

rlink j2534 volvo vida 3

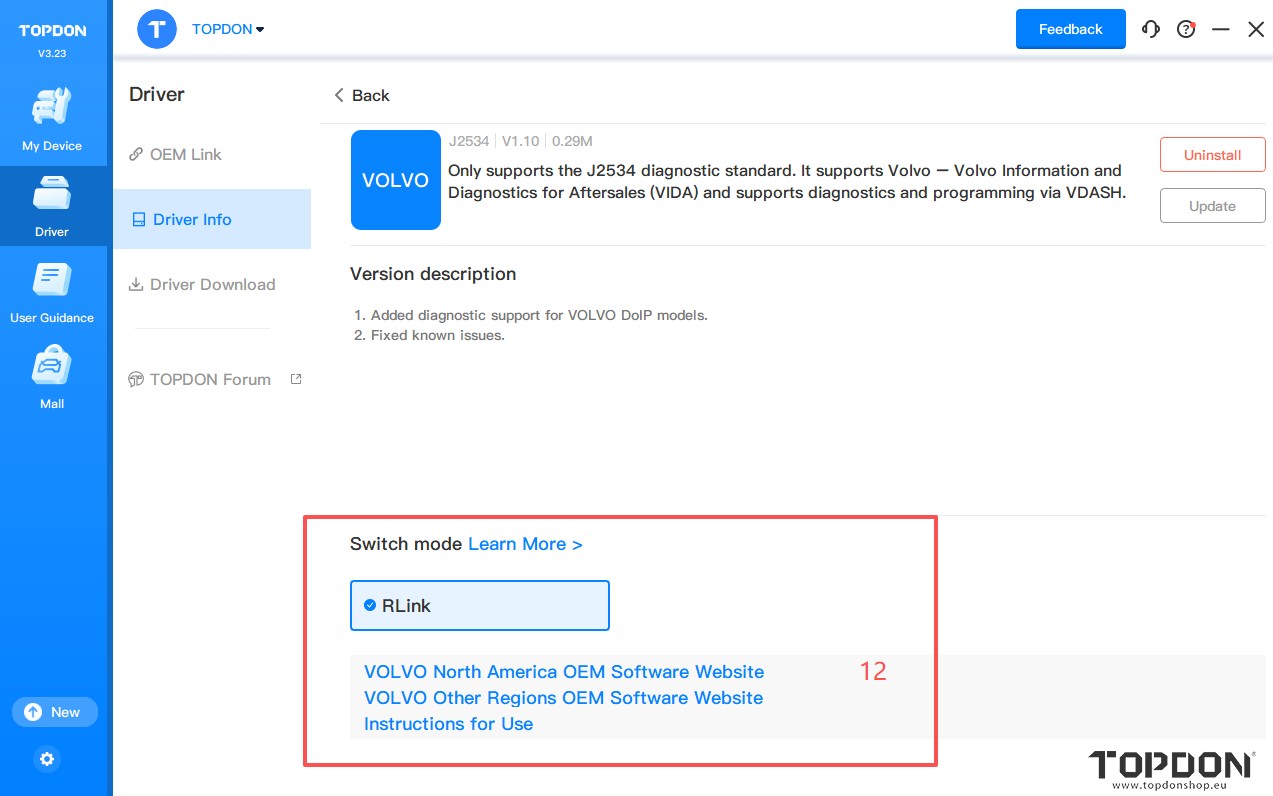

5. When using RLink devices, select RLink as the diagnostic interface on the OEM software. If you are connecting to the original VCI or third-party VCI, open the OEM software and select the original VCI or third-party VCI as the diagnostic interface. This driver will not have any impact.

rlink j2534 volvo vida 4

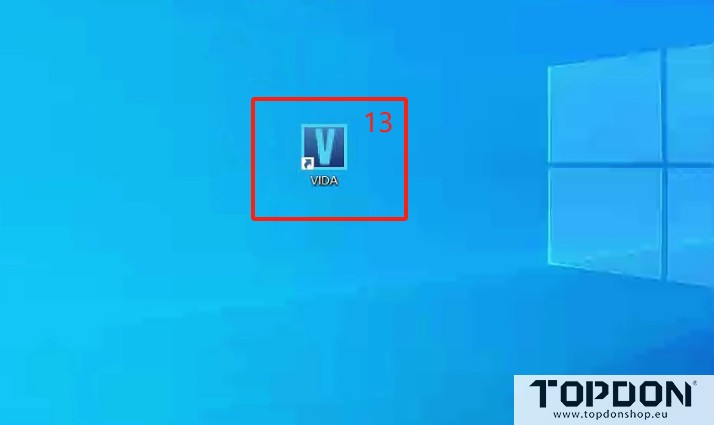

6. Double click the icon to open the VIDA.

rlink j2534 volvo vida 5

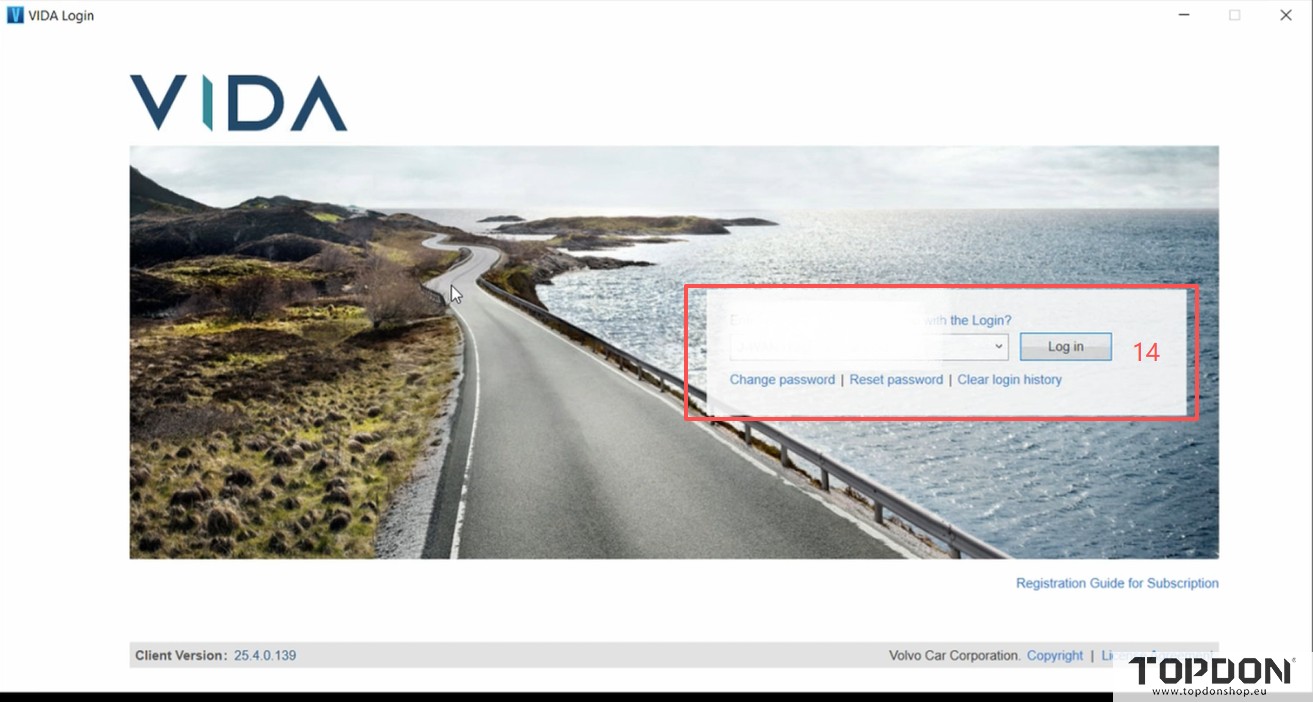

7. Log in to the VIDA account registered on the VOLVO official website.

rlink j2534 volvo vida 6

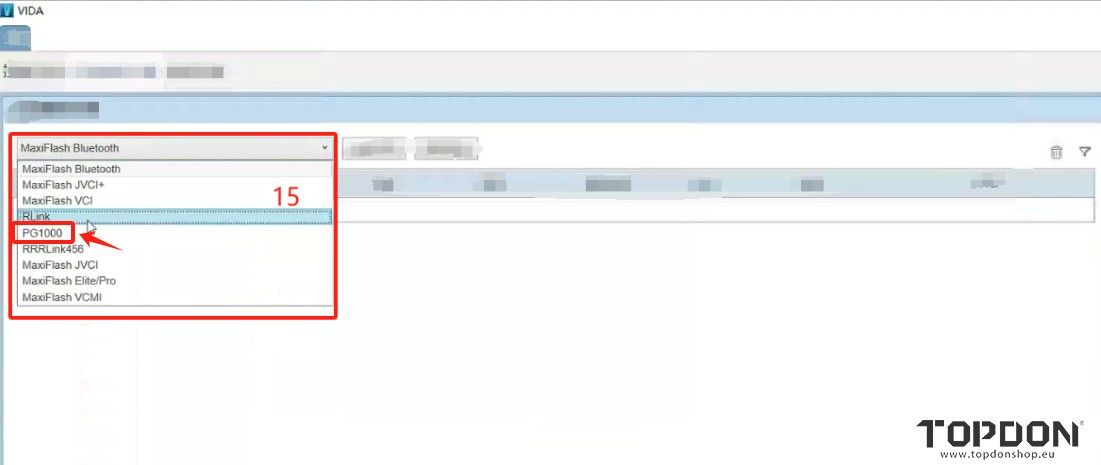

8. Choose PG1000 mode from the drop-down list to start vehicle diagnostics.

rlink j2534 volvo vida 7
