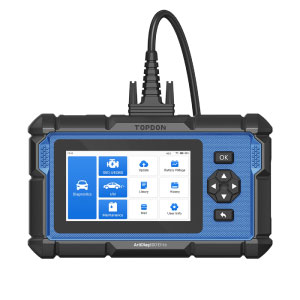

What is the difference between Topdon Artidiag600 Elite, Artidiag600 Pro and Artidiag600 S diagnostic scanners? Here comes the comparison:
| Item | ArtiDiag600 Elite |
ArtiDiag600 Pro |
Artidiag600 S |
| Hardware | |||
| CPU | 4-Core 1.8GHz | 4-Core 1.8GHz | 4-Core 1.8GHz |
| RAM | 2G | 2G | 2G |
| ROM | 32G | 32G | 32G |
| Battery | 3350mAh/3.7V | 3350mAh/3.7V | 3350mAh/3.7V |
| Operating System | Android 11.0 | Android 11.0 | Android 11.0 |
| Screen Size | 12.7cm (5inches) | 12.7cm (5inches) | 12.7cm (5inches) |
| Touchscreen | √ | √ | √ |
| Screen Resolution | 1280×720 | 1280×720 | 1280×720 |
| WiFi | 2.4 & 5 GHz | 2.4 & 5 GHz | 2.4 & 5 GHz |
| Camera | x | × | x |
| Communication | Main cable | Main Cable | Main Cable |
| Button | 6 | 6 | 6 |
| Software | |||
| Full OBDII Functionality｜Read DTCs | √ | √ | √ |
| Full OBDII Functionality｜Clear DTCs | √ | √ | √ |
| Full OBDII Functionality｜Live Data | √ | √ | √ |
| Full OBDII Functionality｜I/M Readiness | √ | √ | √ |
| Full OBDII Functionality｜Freeze Frame Data | √ | √ | √ |
| Full OBDII Functionality｜O2 Sensor Test | √ | √ | √ |
| Full OBDII Functionality｜On Board Monitor Test | √ | √ | √ |
| Full OBDII Functionality｜Evap Test (Mode$8) | √ | √ | √ |
| Full OBDII Functionality｜Vehicle Information | √ | √ | √ |
| System Support | All systems | All systems | 4 systems |
| System Diagnostics｜Read ECU Information | √ | √ | √ |
| System Diagnostics｜Read DTCs | √ | √ | √ |
| System Diagnostics｜Freeze Frame Data | √ | √ | √ |
| System Diagnostics｜Clear DTCs | √ | √ | √ |
| System Diagnostics｜Data Stream | √ | √ | √ |
| Bi-Directional Control/ Active Test | x | x | x |
| Special Function (inside the control unit) | x | x | x |
| Hot Functions | 13 | 9 | 9 |
| Online Coding | x | x | x |
| Online Programming | × | × | x |
| Flash Hidden Function | x | x | x |
| Gateway Access | FCA SGW/Renault SGW | FCA SGW/ Renault SGW | FCA SGW/Renault SGW |
| Guided Function | x | x | x |
| AutoVIN | √ | √ | √ |
| SCAN VIN / License | √ | √ | √ |
| ADVANCED PROTOCOL | |||
| CAN-FD | √ | √ | √ |
| DoIP | x | × | x |
| J2534 | x | × | x |
| Others | |||
| Remote Desk | √ | √ | √ |
| DTC Look UP | √ | √ | √ |
| WiFi / PC | WiFi / PC | WiFi / PC | |
| Vehicle Coverage | 70+ | 70+ | 70+ |
| Update Method | 2 years free update | Lifetime free update | Lifetime free update |
In sum:
AD600 series has the same hardware configuration. They have slight differences in functions.
AD600 Elite and AD600 Pro are full system scanners; AD600S only supports 4 systems.
AD600 Elite has more service functions than AD600 Pro and AD600S.
AD600 Elite supports 2 years free update, while AD600Pro and AD600S enjoy lifetime free update.
